Motorized Zoom Lens Control

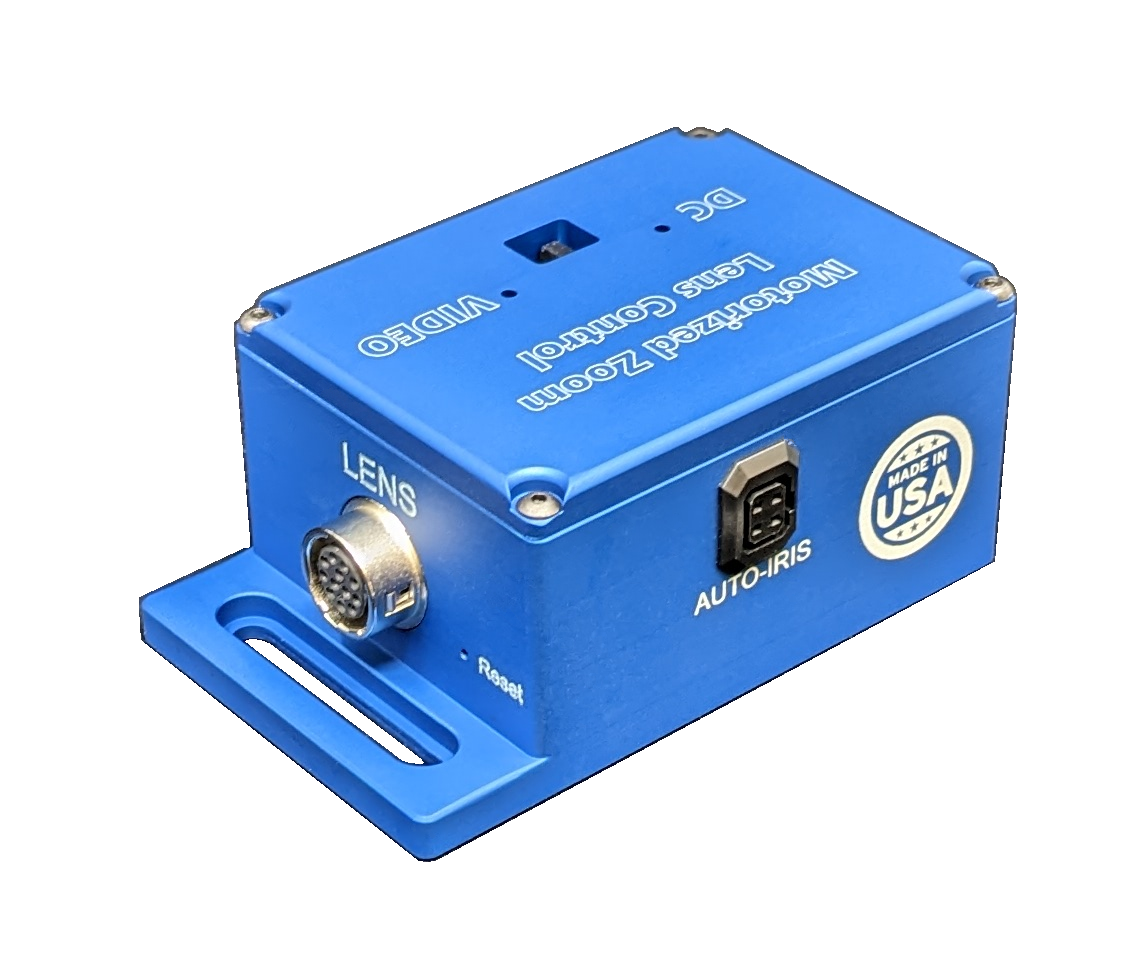

Motorized Zoom Lens Controller

(Product ID: LC-1S)

Operate any camera with a motorized zoom lens using the Motorized Zoom Lens Controller.  Ideal for integrated remote surveillance and security systems and long-range surveillance applications like border and port security.  The Motorized Zoom Lens Controller (LC-1S) is a compact controller for motorized zoom lenses. The LC-1S can operate lenses with up to three motors with or without potentiometers as well as auto-iris lenses with DC or Video iris.   The Ethernet connection makes communication much simpler than traditional serial lens controllers and also allows it to be operated over a longer distance than serial devices.

Integrate control of your lens into your own software using the available API command structure.  This command structure is compatible with Windows, Linux and MacOS.

Features

  • Compatible with 99% of the motrozed lens tested (motorized and DC/Video Auto-Iris)
  • Accurate control of Zoom, Focus, and Iris (motorized and DC/Video Auto-Iris)
  • 10/100Mbps Ethernet interface
  • Connect to and control multiple devices over a local network or wirelessly via AP
  • Easy to use software interface or integarate to your system with TCP/IP API commands
  • Programmable preset capability to easily store and recall saved positions on the lens

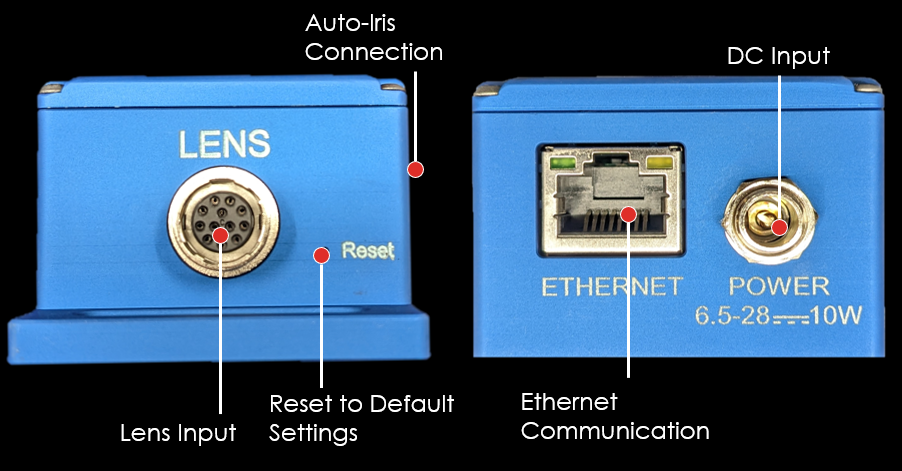

  • Hirose locking connector for lens communication (zoom, focus and motorized iris)
  • Standard 4 pin EIAJ connector for Auto Iris (DC or Video)

Support services like wiring to a lens and lens matching for specific applications are also available.

The LC-1S is designed and made in the U.S.A. right here in our production facility in Dayton, OH.



Downloads

Motorized Zoom Lens Controller (LC-1S) Datasheet.pdf

Motorized Zoom Lens Controller (LC-1S) User Manual.pdf

API Programming Reference (LC-1S).pdf

LC-1S 2D Drawing.pdf

User Interface: v1.0.8 (Windows 32/64-bit)

Firmware (For LC -1s with serial number 19XXX): v3.0.7

Firmware (For LC-1s with serial number 21XXX): v3.0.7_new

CCTV Lens Controller Demo Software  CCTV Lens Controller Modes

If you are using a 3-motor lens and do not require auto-iris, check out our discount previous generation controllers.


EU Declaration of Conformity.pdf
