EF Zoom Controller

EF Zoom Lens Controller

(Product ID: LC-PZA2)

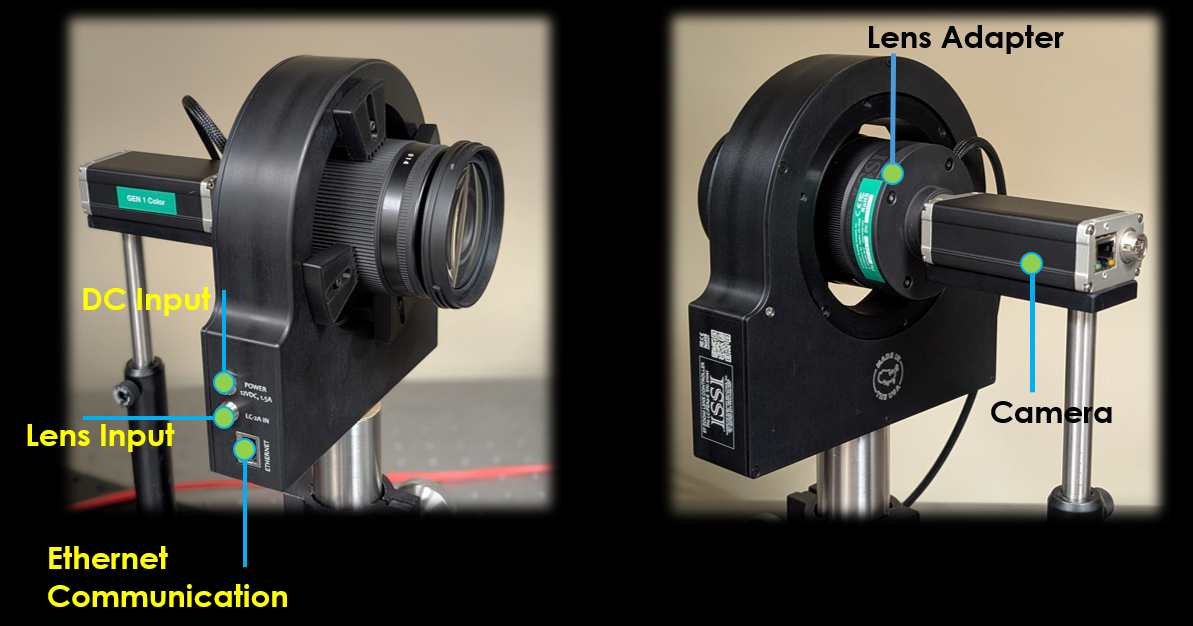

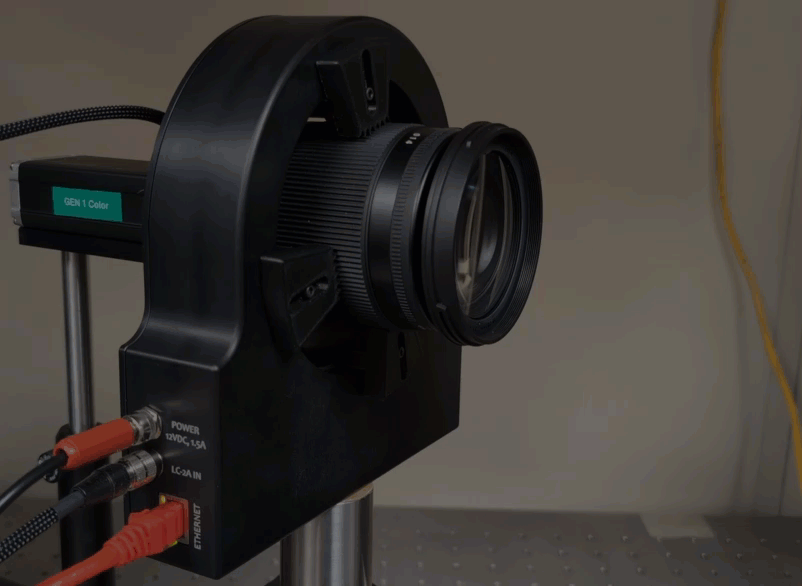

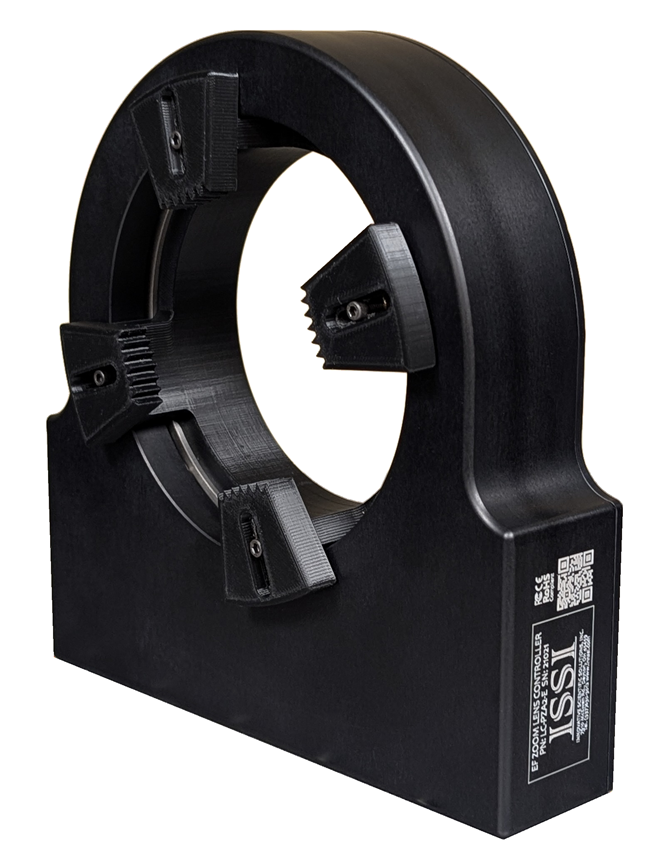

The EF Zoom Lens Controller is a complete EF lens control system designed to operate a limited number of EF zoom lenses, giving full control of the zoom, focus and aperture of a lens.  The controller is designed to operate select Canon® EF and L series IS auto focus lenses as well as select Sigma® EF lenses.  Commands for the controller can be written into existing software for both Windows and Linux via API commands.  The controller pairs with a LC-2A lens adapter to connect to a variety of camera mounts.    The device is operated via a graphical user interface and allows for preset positions of the lens to be saved and then recalled at any time.  It can also be integrated into existing software via TCP/IP API commands in Windows and Linux operating systems.

Features

  • Remotely control select Canon® and Sigma® EF/EF-S auto focus (AF) lenses on any camera
  • Accurate and repeatable control of Zoom, Focus, and Aperture (Iris)
  • Image stabilization control (IS for Canon®, OS for Sigma®)
  • Auto-detection of attached lens and F-number stops with included lens adapter
  • Lens drift compensation
  • Auto-detection of zoom range and position (for zoom lens)
  • Communication: 10/100 Mbps Ethernet Interface
  • Programmable preset capability to easily store and recall saved zoom/focus/aperture positions on the lens
  • c-, M42-, T- and M58x0.75 lens adapter mount options available to connect to a camera

Downloads

EF Zoom Controller Datasheet.pdf

EF Zoom Controller Operating Manual.pdf

EF Zoom Controller API Programming Reference.pdf

Canon EF Zoom Lens Controller

Supported lenses:

Canon EF 70-200mm f4 L USM

Sigma 18-300mm f3.5-6.3 DC OS HSM Contemporary
